I、Brief introduction
Cement bag loader is composed of plain belt conveyor, discharge bag unit, end sliding chute and middle sliding chute etc. The frame of plain belt convyor of variable breadth loader is used steel plate bending structure which looks beautiful and stong. Driving device is used cycloid pin wheel reducer. Save covering area. Tension way is used middle vertical screw tension. Bag discharge unit of variable breadth loader is composed of vertical belt conveyor, motorized handspike and frame. When cement bag is not requested to discharge from the center position, vertical belt conveyor is on the side of packing belt conveyor. When cement bag is requested to discharge from the center position, motorized handspike will draw vertical belt conveyor and make it wobble and be in crossing position with packing belt conveyor, and start the vertical belt conveyor. Limit switches are arranged at the limit position of the two wobblesof the vertical belt conveyor, of which location in working condition and not-working condition is realized by limit switches. Sliding chute for special design makes cement bag fall down in the center position of belt conveyor.
DZQ100 loader has two types which are varibale breadth loader and B650 travel loader. Motorized swerving chute, middle discharge structure and loader are used in coorperation and can be controlled automatically.
DZQ100 loader has two types which are varibale breadth loader and B650 travel loader. Motorized swerving chute, middle discharge structure and loader are used in coorperation and can be controlled automatically.

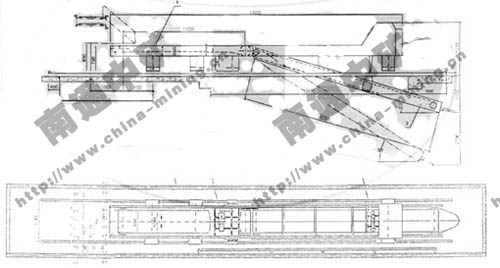

Ⅱ.Sketch
III.Technical capacity
Loading capacity：100-130t/h Travel：10m
Belt width of belt conveyor：650mm Belt speed of belt conveyor：1.25m/s
Power of belt conveyor：2.2KW Lifitng speed of hoisting structure：0.13m/s
Power of hoisting structure：3.0KW Horizontal travel speed of the whole machine：0.23m/s
Power of travel structure：2.2KW Power of the whole：7.4KW
Power voltage：AC 380V 50Hz Control voltage：AC 220V
The Max.variable breadth height of loading positon：about 2.7m
Belt width of belt conveyor：650mm Belt speed of belt conveyor：1.25m/s
Power of belt conveyor：2.2KW Lifitng speed of hoisting structure：0.13m/s
Power of hoisting structure：3.0KW Horizontal travel speed of the whole machine：0.23m/s
Power of travel structure：2.2KW Power of the whole：7.4KW
Power voltage：AC 380V 50Hz Control voltage：AC 220V
The Max.variable breadth height of loading positon：about 2.7m
Wobbling range of variable breadth belt conveyor：-30°～-10°
